Bangladesh Limited

S.01

Full-Scope Turbocharger Service

From controlled dismantling to precision reassembly, RotoTech handles every stage of turbocharger overhaul. Our core strength is precision dynamic balancing of axial-flow and radial-flow rotors across all major OEM platforms, backed by 15+ years of field and workshop experience across Bangladesh.

15+
Years of field and workshop experience
G0.4
Finest ISO 21940 balancing grade
9
Turbocharger makes serviced
24/7
Emergency support

Full scope

What we do

  • Controlled dismantling and detailed component inspection
  • Precision reassembly
  • Refurbishment of critical rotating and static parts, including turbine blades, nozzle ring vanes, shroud rings, turbine diffusers, air diffusers, turbine shafts, hoods and more
  • Supply of genuine and compatible spare parts across all supported models
  • Precision dynamic balancing of axial-flow and radial-flow turbocharger rotors to ISO 21940 grades G0.4 and G2.5
Request a quote
Dynamic Balancing of Axial Turbocharger Rotor

Components

Inside a turbocharger

Every part of a turbocharger wears in its own way. Choose a part to see what we do with it.

Air in Exhaust gas inGas out
  1. Draws in air and compresses it. We inspect it for erosion, fouling and cracks, and balance it with the rotor.

  2. Turns the air's speed into pressure. Refurbished, or replaced with a genuine or compatible part.

  3. Carry the shaft at full speed. Exchanged at the interval on the rating plate, or sooner when damage is found.

  4. Joins the turbine and compressor wheels. Worn journals are rebuilt by thermal spray and machined back to size.

  5. Driven by the exhaust gas. Blades are crack-tested with dye penetrant, refurbished or replaced, and the rotor balanced to ISO 21940 G0.4–G2.5.

  6. Guides the gas onto the blades. Vane profiles restored to OEM standard, or the ring changed to a better-matched specification.

  7. Sets the clearance around the blade tips. Refurbished or replaced.

  8. Carry the air and gas. Stress areas checked by magnetic particle inspection; hoods and turbine diffusers refurbished.

Maintenance

Overhaul by running hours

A turbocharger's rating plate states its type and service interval, the safe life and exchange interval of its rotating parts — bearings, shaft and compressor wheel — and its safe operating speed and temperature. We plan inspections and overhauls on those running hours, so parts are exchanged before they reach their limit.

01Dismantling & inspectionControlled dismantling and detailed component inspection.
02CleaningUltrasound, high-pressure water-jet, hot-water and dry-ice cleaning, chosen for each part.
03Crack detectionMagnetic particle and dye-penetrant checks on shafts, wheels and casings.
04Refurbishment & partsBlades, nozzle rings, shroud rings, diffusers, shafts and hoods restored, or replaced with genuine or compatible parts.
05BalancingRotor balanced to ISO 21940 grades G0.4 and G2.5.
06Reassembly & testPrecision reassembly, then testing before the unit goes back into service.
07ReportFindings, measurements, photographs and recommendations in a turbocharger inspection report.

In the workshop

  • Large turbocharger in the Savar workshop

    Large turbocharger in the Savar workshop

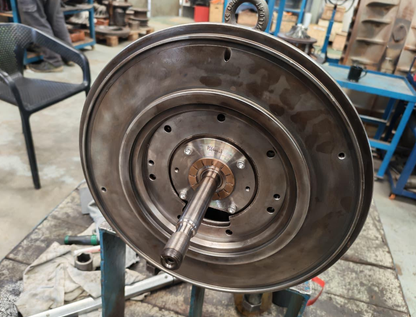

  • Reassembled turbocharger

    Reassembled turbocharger

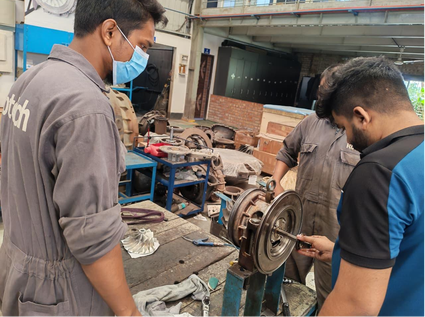

  • Technical discussion in the workshop

    Technical discussion in the workshop

  • Dynamic balancing of an axial turbocharger rotor

    Dynamic balancing of an axial turbocharger rotor

  • Inspecting a turbocharger casing

    Inspecting a turbocharger casing

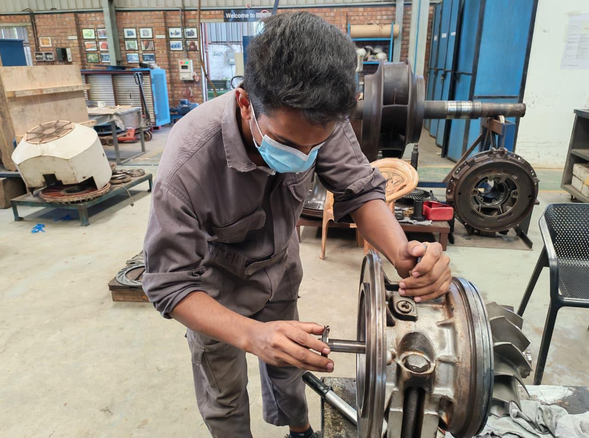

  • Torque tightening on a bearing housing

    Torque tightening on a bearing housing

Refurbishment

Turbocharger refurbishment

Complete mechanical machining, precision component refurbishment, disassembly and reassembly, dimensional restoration through controlled machining processes, and comprehensive post-repair inspection and functional testing to ensure full compliance with original OEM dimensional tolerances and performance specifications.

Nozzle ring vane refurbishment

Nozzle ring refurbishment

We restore worn, eroded, and thermally damaged nozzle ring vanes to their original aerodynamic profile and target throat area, ensuring optimum exhaust gas flow and turbocharger efficiency. Our refurbishment process repairs crack initiation, thermal fatigue damage, and edge erosion, extending component service life and providing a cost-effective alternative to replacement.

  • Nozzle ring vane refurbishment

    Fig. 1Nozzle ring vane refurbishment

  • Nozzle ring vane refurbishment

    Fig. 2Nozzle ring vane refurbishment

  • Nozzle ring side wall crack refurbishment

    Fig. 3Nozzle ring side wall crack refurbishment

  • Nozzle ring side wall crack refurbishment

    Fig. 4Nozzle ring side wall crack refurbishment

  • Nozzle ring NDT test

    Fig. 5Nozzle ring NDT test

Turbine blades

Turbine blade refurbishment (tip & root)

Turbine blade tip refurbishment, after

Restore the serviceability of your turbine blades without premature replacement. We refurbish blade roots, platforms, and damping wire entry hole regions, repairing wear and service-related damage while restoring critical geometries to OEM standards. Each blade is verified through Dye Penetrant Inspection (DPI), ensuring defect-free repairs, enhanced reliability, extended service life, and reduced maintenance costs.

  • Turbine blade side refurbishment, before

    Fig. 1Turbine blade side refurbishment, before

  • Turbine blade side refurbishment, after

    Fig. 2Turbine blade side refurbishment, after

  • Turbine blade tip refurbishment, before

    Fig. 3Turbine blade tip refurbishment, before

  • Turbine blade tip refurbishment, after

    Fig. 4Turbine blade tip refurbishment, after

  • Turbine blade NDT test after refurbishment

    Fig. 5Turbine blade NDT test after refurbishment

Shroud & cover rings

Turbocharger shroud ring, cover ring & turbine diffuser refurbishment

Shroud ring refurbishment, after

Restore the performance of your turbocharger without costly component replacement. We refurbish shroud rings, cover rings, and turbine diffusers by repairing wear and restoring original dimensions and sealing surfaces to OEM specifications, enhancing efficiency, reducing leakage, and extending component service life.

  • Cover ring refurbishment, before

    Fig. 1Cover ring refurbishment, before

  • Cover ring refurbishment, after

    Fig. 2Cover ring refurbishment, after

  • Shroud ring refurbishment, before

    Fig. 3Shroud ring refurbishment, before

  • Shroud ring refurbishment, after

    Fig. 4Shroud ring refurbishment, after

Turbine casing

Turbocharger turbine casing refurbishment

Turbocharger turbine casing, after refurbishment

The turbine casing works under constant exposure to hot exhaust gas, thermal cycling and corrosive deposits, which lead to cracking, erosion, distortion and damaged sealing surfaces. RotoTech refurbishes turbocharger turbine casings to restore their original condition and fit. Worn or damaged areas, including flange faces, mating surfaces and nozzle ring seats, are repaired or machined back to specification. Where the casing is water-cooled, we also check the cooling passages for leaks and blockages. Each casing is verified against OEM tolerances before release, so it seals properly, supports correct clearances and returns to service with a longer, more reliable life.

  • Turbocharger turbine casing, before refurbishment

    Fig. 1Turbocharger turbine casing, before refurbishment

  • Turbocharger turbine casing, after refurbishment

    Fig. 2Turbocharger turbine casing, after refurbishment

Reconditioning

Recovered to OEM specification

Many damaged parts don't need replacing. We restore nozzle rings to their OEM vane profiles, and rebuild worn shafts and journals by thermal spray before machining them back to size — usually for a fraction of the price of a new part.

<10%of the OEM replacement price
3,000+ hin service since, without issues
≈5M BDTsaved for the customer
Cracked turbocharger nozzle ring before refurbishment

A175-M66 nozzle ring, Desh Energy Chandpur

On a Wärtsilä W50V20DF engine, the A175-M66 nozzle ring had cracked and deformed after 10,000–15,000 hours, lowering turbocharger speed and charge-air pressure and raising temperatures. We assessed the damage, restored the vane profiles to OEM standard and tested the ring; it has run more than 3,000 hours since.

We have refurbished nozzle rings for ACE Alliance Power, RPCL 100 MW and Orion Sonargaon Power as well.

Nozzle-ring refurbishment

  • Nozzle ring before and after refurbishment

    Nozzle ring before and after refurbishment

  • Nozzle ring after refurbishment

    Nozzle ring after refurbishment

  • Side-wall refurbishment of a nozzle ring

    Side-wall refurbishment of a nozzle ring

  • Side-wall refurbishment of a nozzle ring

    Side-wall refurbishment of a nozzle ring

  • Cracked nozzle ring, before refurbishment

    Cracked nozzle ring, before refurbishment

Retrofit & matching

The right specification for the engine

A turbocharger works best when its specification suits how the engine actually runs. Changing a nozzle ring or other parts to a better-matched specification — or, where it pays, moving to another turbocharger — can bring fuel consumption and exhaust temperatures back on target. We assess the case, then supply or refurbish the parts and fit them.

2–3 g/kWhlower specific fuel consumption
40–50 °Clower exhaust temperature
6,000 hcylinder valves without burning
Nozzle ring specification change at the RotoTech facility

ABB TPL76-C33, Summit Kodda 300 MW

On the plant's Wärtsilä W46V20 engines, the TA20 nozzle rings of the ABB TPL76-C33 turbochargers were holding performance back. We changed them to the TA17 specification — fitting new rings from Accelleron, and refurbishing existing TA20 rings to TA17 at lower cost, which tested on par with new ones.

Gas inlet and outlet casings and turbine diffusers have worn less since, and intermediate cleaning is needed less often.

When rematching pays off

  • Fuel consumption or exhaust temperature off target
  • The engine's operating profile has changed
  • The same part keeps failing early
  • Parts for the present specification are hard to source

Spare parts

Genuine or compatible

We supply parts for every make we service: genuine Napier spare parts and turbochargers as Napier's authorized service provider, the Garrett range as Garrett's master distributor in Bangladesh, and genuine or compatible parts across the other supported models.

Genuine

The turbocharger maker's own part with its reference — the choice when an operator, class society or contract requires it.

Compatible

An interchangeable alternative to the original reference, chosen to cut cost or lead time, and named as such on the quotation.

01IdentifyTurbocharger type, serial number and the part — a photo of the rating plate is the quickest start.
02QuotePrice, lead time and whether the part is genuine or compatible, in writing.
03SupplyDelivered to your plant or ship, or fitted in our workshop.

Multi-brand

Makes and series

ABB, Napier, MAN, KBB, PBS, Garrett, Holset, IHI, Mitsubishi and more.

Multi-brand service

ABB / Accelleron

Models

A100 · A200
A130A135A136A140A145A150A155A165A170A175A180A255A270A275
TPL
TPL61TPL65TPL67TPL69TPL71TPL73TPL76TPL77TPL80TPL85
TPS · TPC
TPS44TPS48TPS50TPS52TPS57TPS61TPC47TPC49
VTR · VTC · RR
VTR160VTR161VTR184VTR200VTR201VTR214VTR250VTR251VTR254VTR304VTR320VTR321VTR354VTR400VTR401VTR454VTR500VTR501VTR564VTR630VTR631VTR714VTR750VTR751VTC214VTC254VTC304RR131RR150RR151RR153RR180RR181RR212RR221

Our work

  • TPL76-C33 nozzle rings changed from TA20 to TA17 — Summit Kodda 300 MW
  • TPL67 inspection after a high exhaust-temperature event — BPDB Titas
  • A175-M66 nozzle ring refurbished — Desh Energy Chandpur
Explore

Authorized service

Napier

Models

NA
NA295NA297NA307NA355NA357NA358NA397NA455NA457NA557
NT1
NT1-10NT1-12
NHP
NHP25NHP30NHP30ALNHP35
HP · SA
HP100HP200HP204HP300SA084SA085SA105A
C045 · WSK T-52
C045WSK T-52

Our work

  • Authorized service provider for Napier repair and reconditioning
  • Genuine Napier spare parts and turbochargers
Explore

Multi-brand service

MAN

Models

NR
NR12NR12/RNR12/SNR14/SNR15NR15/RNR17/SNR20NR20/RNR20/SNR24NR24/RNR24/SNR26NR26/RNR26/SNR29/SNR34/RNR34/S
NA
NA34/KNA34/SNA34/TNA40/SNA40/TNA48/SNA48/TNA57/TNA70
TCA
TCA33TCA44TCA55TCA66TCA77TCA88
TCR
TCR12TCR14TCR16TCR18TCR20TCR22

Our work

  • TCA66 breakdown repaired on board — Kutubdia anchorage
Explore

Multi-brand service

KBB

Models

HPR
HPR3000HPR4000HPR5000HPR6000
ST27
ST3ST4ST5ST6ST7ST-EP
R
R3R3-2R4-2R4-3R5-3
M40 · H
M40H3H32H6-1
K2B two-stage
LPR5HSR4HSR6HPA7000

Our work

  • Service and spare parts
Explore

Multi-brand service

PBS Turbo

Models

TCR
TCR10TCR12TCR14TCR16TCR18
NR / SJ · SR · SX · SRX
NR17/SJNR17/SRNR17/SXNR17/SRXNR20/SJNR20/SRNR20/SXNR20/SRX
PDH
PDH25PDH25-NM/VPDH25-ZVPDH35PDH35-NM/VPDH35-ZVPDH50PDH50-NM/VPDH50-ZVPDH70-NM/VPDH70-ZV
PTR · PTD
PTR154PTR180PTR184PTD230PTD280

Our work

  • Service and spare parts
Explore

Multi-brand service

Mitsubishi MET

Models

MET — SR / SRC
MET18SRCMET22SRMET26SRMET30SR
MET — SB · SC · SD · SE
MET33SBMET33SCMET33SDMET42SBMET42SCMET42SDMET42SEMET48MET53SCMET53SDMET53SEMET56SBMET66SCMET66SDMET66SEMET71SEMET83SDMET83SEIII
MET — MA · MB
MET42MAMET42MBMET48MBMET53MAMET53MBMET60MAMET60MBMET66MAMET66MBMPT42A

Our work

  • Service and spare parts
Explore

Master distributor

Garrett

Our work

  • Official Master Distributor of Garrett Motion in Bangladesh
  • Genuine Garrett replacement turbochargers and parts

Multi-brand service

IHI

  1. RH
  2. RHB
  3. RHC
  4. AT
  5. RU

Our work

  • Service and spare parts

Multi-brand service

Holset

Our work

  • Service and spare parts

Series names identify the equipment. RotoTech is an independent service provider, except where an authorization or distribution agreement is stated.

Track record

Turbocharger work across Bangladesh

  • Marine · 2025

    Greece-flagged vessel, Kutubdia anchorage

    MAN TCA66 breakdown: seized rotor; damaged parts replaced, unit reassembled, tested and commissioned on board.

  • 300 MW

    Summit Kodda Power Plant

    ABB TPL76-C33 on Wärtsilä W46V20 engines: nozzle rings changed from TA20 to TA17 specification, new and refurbished.

  • Wärtsilä W50V20DF

    Desh Energy Chandpur

    A175-M66 nozzle ring refurbished to OEM vane profile after cracking; more than 3,000 hours since.

  • 100 MW · HFO

    BPDB, Chapainawabganj Power Plant

    Turbocharger inspection, cleaning, component assessment, nozzle-ring inspection and related technical support.

  • 50 MW · Peaking

    BPDB, Titas Peaking Power Plant, Cumilla

    ABB TPL67 turbocharger inspection after a high exhaust-temperature and cylinder-valve failure event, with damage assessment and component inspection.

  • 105 MW · HFO

    Orion Power Rupsha Limited

    Turbocharger inspection, mechanical troubleshooting, bearing work, alignment and breakdown support.

Why RotoTech

One partner for the whole turbocharger

What you gain

  • A single service partner for inspection, refurbishment, parts and balancing
  • Rotors balanced to tight grades for smoother, more reliable running
  • Genuine and compatible parts for all supported models
  • Proven experience from 15+ years of field and workshop work

Where we work

  • Marine propulsion
  • Power generation (both IPP and CPP)
  • Industrial process applications
  • Railway engineering

FAQ

Frequently Asked Questions

Which turbocharger makes do you service?

Refurbishment, service, and spare parts for all sorts of axial and radial turbocharger i.e ABB, PBS, KBB, Napier, MAN, MET, Garrett, IHI & Holset turbochargers.

Are you an authorized service provider?

Yes. RotoTech Bangladesh Limited is the Official Master Distributor of Garrett Motion, an Authorized Service Station for Napier Turbochargers, and the Local Representative of VVK TurboTech. We are collaborative partner with iMak, Shakti Turbines, JAKA, Turbogeneral (Greece) and EM Services (India) Private Limited. With over 800 services completed, we deliver OEM-standard quality you can rely on.

How often should a turbocharger be overhauled?

Most of the basic required information is available in rating plate of turbocharger. e.g. Turbocharger type, service interval, rotating component (bearings, shaft & compressor) safe life means exchange interval, operating safe speed & temperature etc also can know from turbocharger rating plate information.

Can a cracked nozzle ring be repaired instead of replaced?

RotoTech Bangladesh Limited stepped in with its state-of-the-art refurbishment techniques, restoring the nozzle ring to OEM specifications.

  • Extended Durability: The refurbished nozzle ring surpassed 3,000 hours of operation without any issues.
  • Cost Efficiency: Refurbishment costs were less than 10% of the OEM replacement price, saving approximately 5 million BDT.

Do you service turbochargers on ships?

RotoTech Bangladesh Limited has recently achieved a significant milestone in the marine engineering sector by successfully completing a complex MAN TCA66 turbocharger breakdown service on a Greece-flagged vessel at the outer anchorage of the Kutubdia deep-sea area.

Do you supply genuine Napier parts?

  • Expert repair and reconditioning of Napier Turbochargers
  • Genuine Napier Turbocharger spare parts and turbochargers

To what balancing grade do you work?

Precision dynamic balancing of axial-flow and radial-flow turbocharger rotors to ISO 21940 grades G0.4 and G2.5

Which sectors do you work in?

  • Marine propulsion
  • Power generation (both IPP and CPP)
  • Industrial process applications
  • Railway engineering
More frequently asked questions

24/7 Emergency Support — +880 1730-067280

Call Us

Ready to Solve Your
Machinery Challenge?

Fast, no-obligation quote from our engineering team — services or projects

Credentials & Partnerships

Napier AuthorizedVVK TurboTechGarrett MotionJAKATGShakti TurbineiMAKEM Services (India) Private Limited
