Complete Turbine Service

RotoTech provides end-to-end steam turbine support: blade refurbishment and replacement, nozzle ring and diaphragm refurbishment, precision balancing, crack detection, shaft alignment and genuine spare parts. We are the authorized local representative of VVK TurboTech, and we offer complete service support for Triveni turbines. One experienced team takes your turbine from inspection through to a rebuilt, balanced and verified rotor.

G0.4
Finest balance grade, ISO 21940
5 tonnes
Rotors balanced in-house, up to
VVK
TurboTech authorized local representative

Overview

End-to-end support for reliable, efficient steam turbine operation

A steam turbine is the heart of a power plant or process facility, and it works in a harsh environment: high temperature, high speed, wet steam and constant stress on every blade and bearing. Over time, deposits, oxidation, erosion, cracking and rotor unbalance take their toll. They reduce efficiency, raise vibration and, if left undetected, lead to blade failure and costly forced outages.

    Request a quote

    What we do

    What we do

    We support your turbine from the first inspection to final verification. Our steam turbine service includes:

    • Refurbishment of turbine blades, diaphragms and nozzle ring vanes, restoring components to a serviceable condition
    • Dynamic balancing in our workshop and field balancing on-site
    • Precision laser shaft alignment of the turbine to its driven equipment
    • Non-destructive testing (NDT) for crack detection and material integrity assessment
    • Damping wire replacement on turbine blading
    • Shaft journal inspection and runout checks before rebuild and balancing
    • OEM spare parts supply for turbines

    Cleaning

    Cleaning and condition assessment

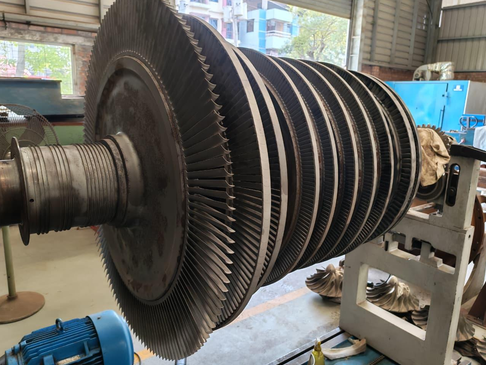

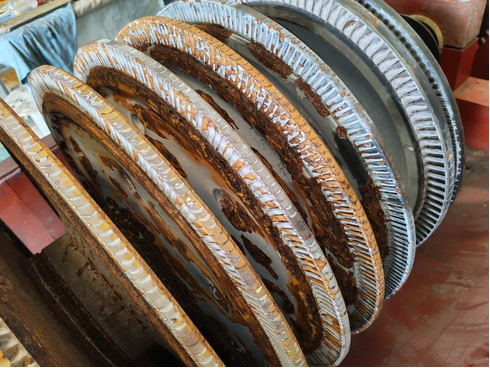

    Cleaned turbine rotorOxidized turbine rotor

    Every successful overhaul starts with a clear picture of the rotor’s true condition. Oxide, scale and process deposits build up on blades, discs and shaft surfaces, and they can hide erosion, pitting and cracks. Before any decision is made on repair or replacement, we thoroughly clean the rotor so that every blade, root, disc and journal can be inspected properly, both visually and by NDT.

    Nozzle rings

    Nozzle ring and diaphragm refurbishment

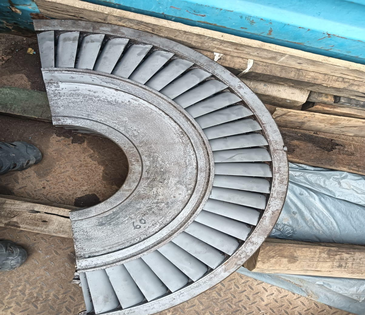

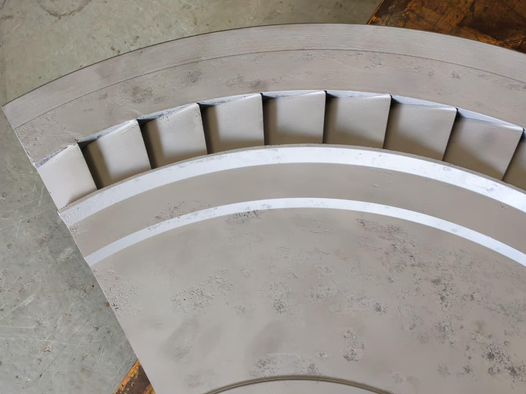

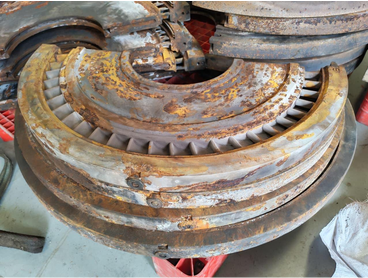

    Blasted nozzle ringOxidized nozzle ring

    Nozzle rings and diaphragms direct the steam onto the rotating blades. When their vanes are covered in oxidation and deposits, or worn by erosion, the flow passages change and turbine efficiency and output suffer. We clean and blast these components, inspect the vanes and surrounding structure, and refurbish them so that the flow passages are restored to the required specification. For Triveni turbines this includes nozzle ring re-specification.

    Blades

    Blade refurbishment, replacement and damping wire

    Turbine blades work under high centrifugal and steam loads, and they are the components most exposed to erosion, corrosion and fatigue. After cleaning and inspection, we refurbish blades that can be returned to service and replace those that cannot. Damping wire is replaced where required, because it helps control blade vibration, and OEM-quality spare parts are supplied for the work.

    NDT

    Crack detection and NDT

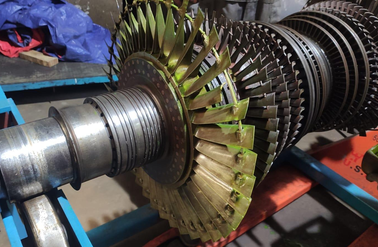

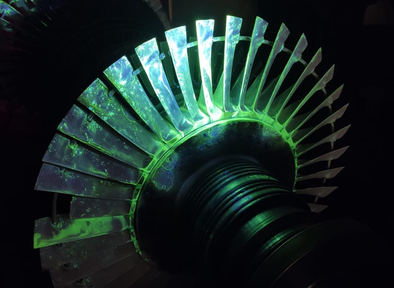

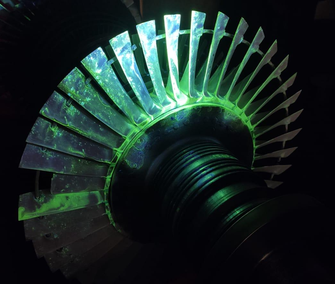

    Dye penetrant inspection (DPI) of a turbine rotor for crack detection

    Cracks in blades, blade roots, shrouds, discs and shafts often start small and stay invisible to the naked eye until they cause a failure. We use non-destructive testing to find them early. In dye penetrant inspection (DPI), a penetrant is applied to the cleaned surface and drawn into any surface-breaking defect. The excess is removed and a developer is applied, which makes the defects visible under suitable lighting, so cracks can be located and assessed without damaging the component.

    The result is an early, documented assessment of material integrity, so that you can repair or replace a component during a planned outage instead of discovering the defect in service.

    Shaft journals

    Shaft journal inspection and runout check

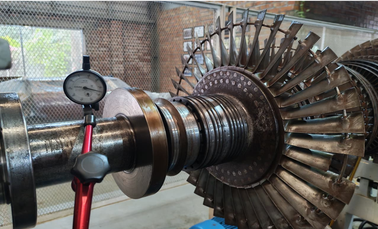

    Turbine shaft journal runout test using a dial indicator

    Bearings can only perform well if the shaft journals they run on are true and in good condition. Before rebuild and balancing, we check the rotor’s journal runout with a dial indicator as the shaft is rotated, and we examine the journal surfaces for scoring, wear and out-of-roundness. This confirms the condition of the shaft, reveals any bend or distortion, and ensures that the rotor is mechanically sound before it goes onto the balancing machine.

    Balancing

    Precision dynamic balancing

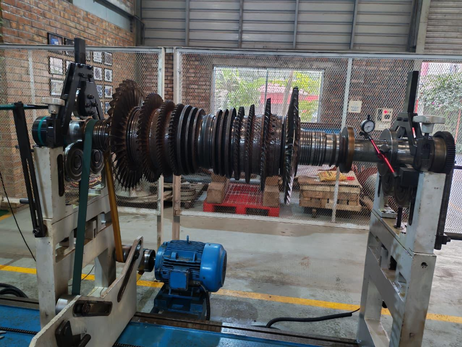

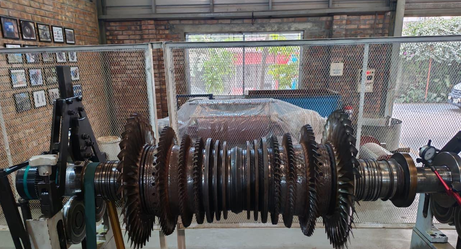

    Steam turbine rotor on our precision universal balancing machine

    A rebuilt rotor must be balanced to run smoothly. Our in-house precision universal balancing facility handles rotors up to 5 tonnes, balanced to grades as fine as G0.4 under ISO 21940. If the rotor cannot be removed, or the outage window is too short, we bring our balancing capability to your site and balance the rotor in its own bearings, under real operating conditions.

    Alignment

    Laser shaft alignment

    Once the turbine is back in service position, we align it precisely to its driven equipment using laser alignment, with thermal growth taken into account. This protects the bearings, coupling and seals, and keeps the machine running smoothly under real operating conditions.

    Brand support

    Triveni and VVK TurboTech

    • Triveni

      Triveni turbine support

      We provide complete service support for Triveni turbines, covering blade refurbishment, nozzle ring re-specification and rotor rebuild with precision dynamic balancing.

    • VVK TurboTech

      Authorized representative

      RotoTech is the authorized local representative of VVK TurboTech.

    Our approach

    Our approach

    Receipt and documentationWe record the as-received condition of the turbine and its components, with photographs, before any work begins.
    CleaningWe remove oxide, scale and deposits so that every surface can be inspected.
    Inspection and testingWe carry out visual inspection, journal runout checks and NDT to find wear, damage and cracks.
    Refurbishment and replacementWe refurbish what can be restored and replace what cannot, using genuine OEM parts, including damping wire where needed.
    Balancing and verificationWe balance the rebuilt rotor to the required grade and verify the result.
    ReportingYou receive a clear report documenting the initial condition, the work carried out and the final results.

    Technical collaboration

    Technical collaboration

    Technical collaboration with students in our workshop

    We believe in sharing practical turbine knowledge. Our workshop welcomes technical collaboration with students, giving the next generation of engineers a close look at real steam turbine rotors and the work involved in keeping them running.

    What you gain

    What you gain

    • One partner for refurbishment, testing, balancing, alignment and spare parts
    • Early detection of cracks and material defects before they cause failure
    • Rotors rebuilt and balanced, and shafts aligned, for smooth, reliable running
    • Restored efficiency through clean, correctly refurbished blades and nozzle rings
    • Genuine OEM parts and authorized brand support
    • Documented results you can use for your maintenance records and quality compliance

    Where we work

    Where we work

    01In our workshopCleaning, inspection, NDT, refurbishment and precision balancing in a controlled environment, with repeatable, accurate results.
    02At your facilityField balancing and laser alignment brought directly to your turbine, for installed machinery and time-critical situations.

    Who we serve

    Who we serve

    Power plants, process industries, cement and heavy industry, food and beverage industry, textile industry, and any facility that depends on steam turbines running reliably.

    1. Power plants
    2. Process industries
    3. Cement and heavy industry
    4. Food and beverage industry
    5. Textile industry

    FAQ

    Frequently Asked Questions

    What steam turbine work do you carry out?

    We support your turbine from the first inspection to final verification. Our steam turbine service includes:

    • Refurbishment of turbine blades, diaphragms and nozzle ring vanes, restoring components to a serviceable condition
    • Dynamic balancing in our workshop and field balancing on-site
    • Precision laser shaft alignment of the turbine to its driven equipment
    • Non-destructive testing (NDT) for crack detection and material integrity assessment
    • Damping wire replacement on turbine blading
    • Shaft journal inspection and runout checks before rebuild and balancing
    • OEM spare parts supply for turbines

    Do you support Triveni turbines?

    We provide complete service support for Triveni turbines, covering blade refurbishment, nozzle ring re-specification and rotor rebuild with precision dynamic balancing.

    Are you a representative of VVK TurboTech?

    RotoTech is the authorized local representative of VVK TurboTech.

    How do you check blades and rotors for cracks?

    We use non-destructive testing to find them early. In dye penetrant inspection (DPI), a penetrant is applied to the cleaned surface and drawn into any surface-breaking defect.

    Can turbine balancing be done on site?

    If the rotor cannot be removed, or the outage window is too short, we bring our balancing capability to your site and balance the rotor in its own bearings, under real operating conditions.

    Do you provide a service report?

    You receive a clear report documenting the initial condition, the work carried out and the final results.
